Based on a unique cutting technology M&J Fine Shredders process pre-shredded, sorted waste and are a vital tool for industries requiring consistent homogeneous waste streams.
Known for their pre-shredding, shredding, crushing, and grinding abilities, M&J shredding equipment can be found in many plastic recycling and incineration plants, hazardous waste processing facilities, transfer stations, C&D recycling plants, landfills, RDF/SRF/PEF production facilities, and many more processes. These rugged units can be found in over 500 installations around the globe.
FINESHRED SERIES
M&J offers a complete line of products for the alternative fuel application. Most lines start with an M&J Pre-shredder followed by a screening and separation process that includes the Westeria windsifter and other components. For the final fuel sizing, we offer the M&J FineShred series. These single and twin-shaft shredders have been developed specifically for the production of alternate fuel from waste:
The M&J FineShred units can be used in various applications, including tackling difficult materials. Particle sizes of 10-100 mm are obtainable depending on the screen size applied.
FEATURES
SHAFT
The patented shaft can be fitted with several different cutting tools. Knife blocks are positioned firmly in the shaft utilizing a unique self-centering, distortion, and tilting-safe assembly. In the FineShred, the shafts are positioned in a way that secures correct feeding via the pusher. Along with the geometry of the 12-edged shaft, which minimizes the risk of materials winding up, this secures no heat development in the machine.
KNIVES
are available in different designs depending on the demands of different applications. The positioning of the counter knives in relation to the rotating knives results in a “clean cut” minimizing dust emissions. Easy adjustment of the cutting clearance is secured with the help of notches.
SCREEN
Due to the precise cutting of the material the strain on the screens is minimal and the design can therefore be made in very thin materials. Typically, the screens are manufactured from 6 mm thick steel plates. As there is no pressure on the screen the open area can be optimized and secure a high output rate.
DRIVE
The hydraulic system consists of a variable pump with power control, an integrated feed pump, and a hydraulic motor mounted on each shaft. Altogether a “state of the art” double hydrostatic system, provides the maximum output and the most reliable performance available.
M&J F140
FEATURES
The M&J F140 is the ideal shredders for RDF/PEF and SRF from waste. These units allow enormous capacities that range from 3-20 tons per hour depending on the utilized screen size. Easy access to the rotor in combination with the well-known M&J feature makes maintenance a breeze.

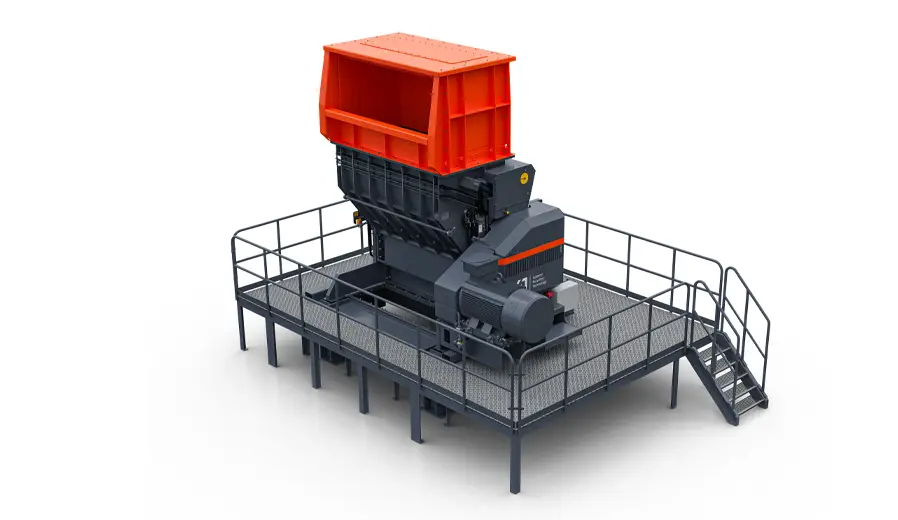

M&J F240e
NEW MID-SIZED ELECTRICAL FINE-SHREDDER
The new M&J F240e is designed to revolutionize fine-shredding. It combines energy efficiency, impressive capacity, and user-friendliness without compromising on power and is the obvious waste fine-shredder for most production needs – ideal for RDF and SRF production.
The M&J F240e isn’t just a shredder; it’s a brilliant long-term investment.
PERFECT FOR DIFFICULT CHALLENGES
Unique Cutting System
The M&J F240e sets itself apart with its unique cutting system. It slices through anything effortlessly, leaving waste in uniform sizes. Once rotor blades and static knives are set, there’s no need for routine adjustments, saving you time and frustration.
Gentle on Your Wallet
Our extensively tested e-drive solution offers the same power as hydraulic but with substantial energy savings. Customers can expect:
Easy access makes service a breeze
Everything is meticulously thought out on the M&J F240e – especially the replacement of wear parts. The service team has quick and easy access to everything, enabling them to replace all wear parts extremely quickly. This keeps costs down and the shredder’s production time up.
M&J
M&J F320 E-drive
The strongest electric member in the M&J family of superior Fine-Shredders for high-capacity production of alternative fuels like RDF and SRF.
Tired of limitations?
The M&J F320 E-drive is created to break them down!
The M&J F320 E-drive is targeted high production of alternative fuels like RDF and SRF. It is reliable, easy to monitor, and delivers up to 28 tons/h. It is power in its purest form. It comes with an intelligent electric solution based on market-proven technology. It gives you the same output as always but with less energy consumption and less maintenance.
No need to compromise:
The M&J F320 E-drive is the powerful flagship in M&J’s strong fine-shredder series. It is sharper and stronger than ever – simply built to deliver a stable, high-quality output of RDF/SRF at a minimal operating expense.
